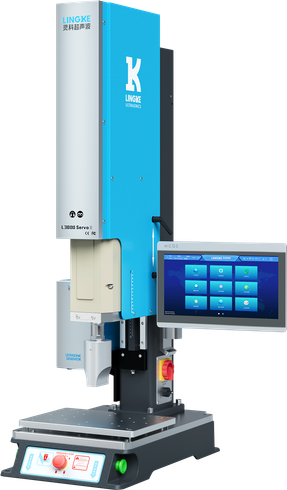

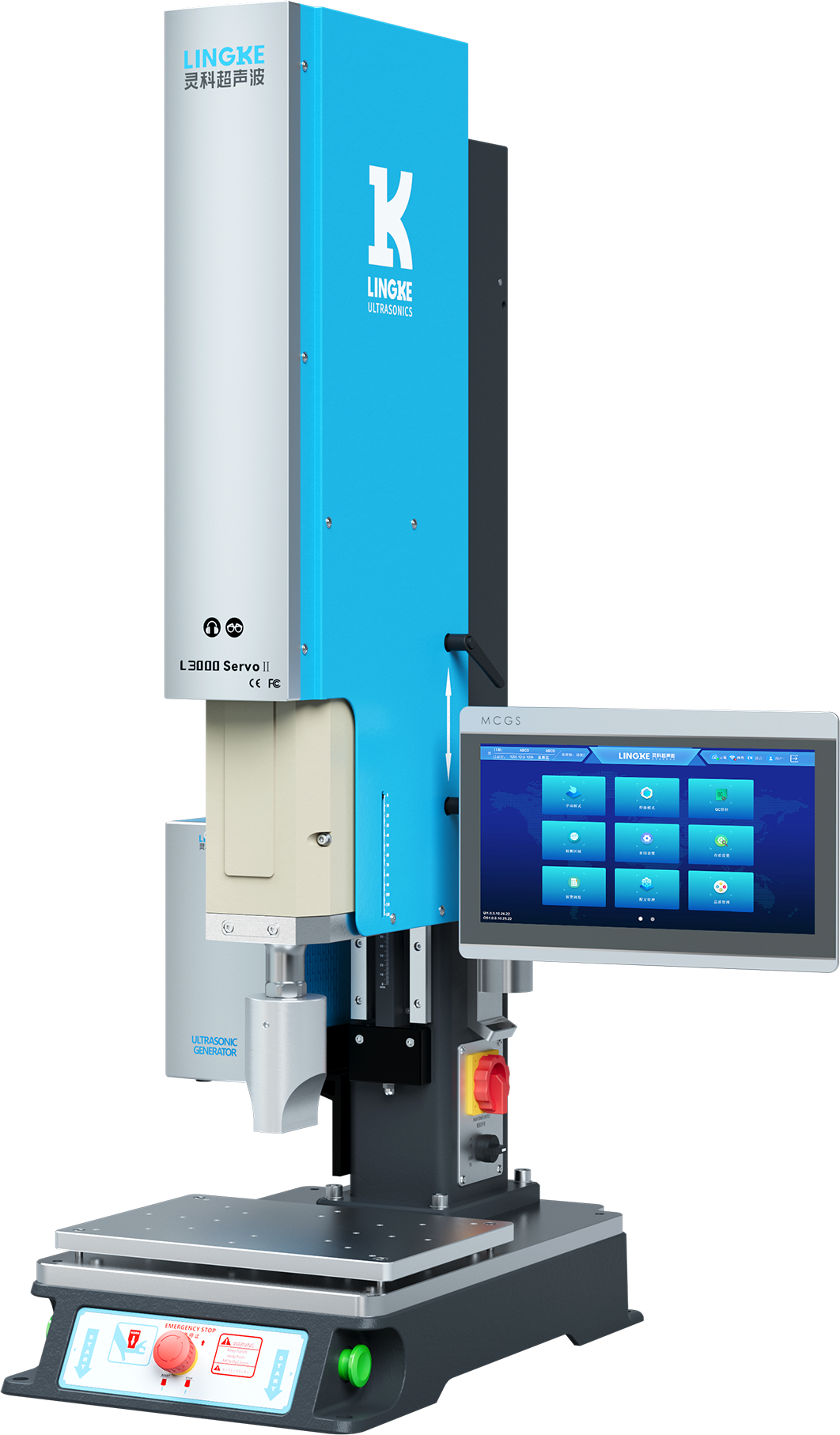

L3000 SERVOⅠ (2000W/3000W Ultrasonic Welding Machine)
Digital Type
1.
Digital amplitude regulation
2.
5 types of welding modes
3.
Supports Wi-Fi-4G wireless networks
Features ——
• Adopt high-precision Panasonic servo motor combined with FESTO precision electric cylinder, stable output, accurate control
• Support Wi-Fi-4G wireless network, system remote operation and maintenance
• Digital amplitude adjustment: welding amplitude 10%-100% adjustable (resolution 1%)
• Support welding recipe setting, storage and export function, can call the recipe according to demand
• A variety of welding abnormal alarm, real-time follow-up welding conditions
• Horizontal plate and column are made of steel and processed by high precision CNC equipment
• Automatic periodic scanning of transducer component frequency, correction of transducer frequency drift
• 7 kinds of welding modes, 4 kinds of vibration trigger mode
| Machine type | L3000 Servo I | Fuselage travel | 511mm |
| Frequency | 15kHz/20kHz | Welding area | 2000W:Φ170mm/3000W:Φ260mm |
| Frequency modulation range | 15K：14300-15300Hz / 20K：19300-20300Hz | Press size | 680*400*1656mm（Max） |
| Power | 2000W/3000W | Generator size | 436*124*270mm |
| Input power supply | AC 190-240V 50/60Hz | Input pressure | ＞0＜7bar |
