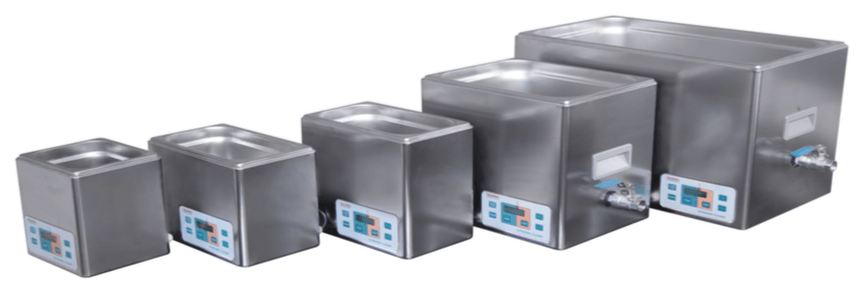

Ultrasonic Cleaning Machine
India Made-Telsonic Switzerland Welder
TPC Series
DESCRIPTION
Ultrasonic vibration, generate agitation in liquid result into’Cavitation’, which is rapid formation and collapse of minute bubbles in liquid. Implosion of bubbles with high pressure on exposed surface of component dislodges and removes contamination like dirt, dust, oil, grese, chips,wax,lapping paste,carbon etc. It helps in cleaning of inaccessible areas.
Technical Specifications
| Type | TPC-15H | TPC-25H | TPC-40H | TPC-120H | TPC-280H | |
|---|---|---|---|---|---|---|
| Main Voltage | V | 230 | 230 | 230 | 230 | 230 |
| Current Consumption incl. Heater | Amax | 0.8 | 1.0 | 1.2 | 5.0 | 8.0 |
| Ultrasonic output eff/peak | Wmax | 75/150 | 75/150 | 150/300 | 300/600 | 600/1200 |
| Operating frequency | Khz | 30 | 30 | 30 | 30 | 20/30/40 |
| Digital adjustable thermostats | 20°-80°C | Yes | Yes | Yes | Yes | Yes |
| Digital Timer | 1s-99min | Yes | Yes | Yes | Yes | Yes |
| Heating power | W | 120 | 150 | 150 | 800 | 1200 |
| Tank capacity | L | 1.5 | 2.5 | 4 | 12 | 28 |
| Int. Dimensions L x W x D | mm | 150x135x100 | 235x135x100 | 235x135x150 | 300x235x200 | 505x300x200 |
| Ext. Dimensions L x W x D | mm | 180x165x220 | 265x165x220 | 265x165x262 | 330x270x325 | 535x330x370 |
| Outlet valve | No | No | No | Yes | Yes | |
| Weight | Kg | 3.0 | 4.0 | 4.5 | 9.0 | 18.0 |
| Item Code | 900 975 010 | 900 976 010 | 900 978 010 | 900 979 010 | 900 981 010 |
