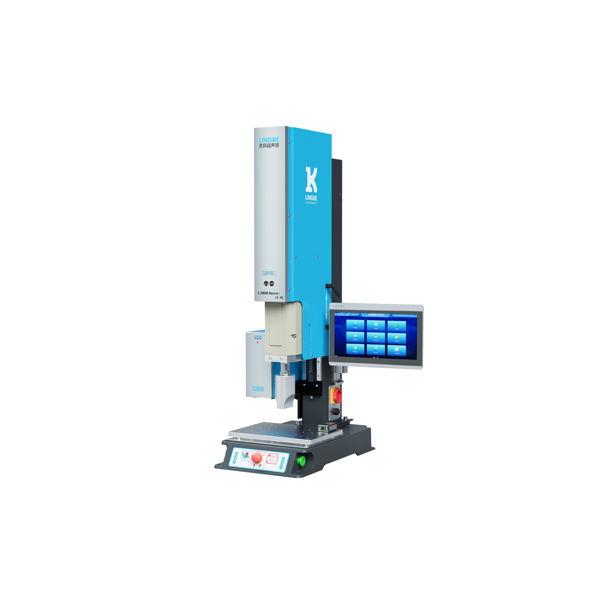

L3000 ServoⅠ (2000W/3000W Ultrasonic Welding Machine)
1.
Integrate multiple welding control technologies.
2.
3-stage actual pressure control, with a time accuracy of lms.
3.
Servo stroke control system,welding precision 0.0lmm.
4.
Fault selfdetection function, which can inspect various switch functions of the body.
5.
Dataexport:Comes with built-in storage/transmission for welding data exportfacilitatingintelligent data tracking.
Features ——
Language menu: Chinese/English.
Amplitude built-in, adjustable from 10% to 100%.
5 operating modes: manual mode, time mode, energy mode, travel absolute, Us Stop.
4 trigger modes: time, travel, and pressure trigger, calculate time from source.
5 types ofintelligent management: amplitude management,quality managementdata export and security management.
Intelligent control feedback function: faultselfdetection, real time automatic frequency tracking , frequency locking, circuit constant voltage function.
Fixture horizontal adjustment (optional: XYwelding platform).
loT function: supportingRS232/485 data docking, and printer output.
3 types of pressure control: trigger pressure, welding pressure, and cooling pressure control.
3 weldingapplication modes: automated assemblyline mode, Europeansafety mode,and pulse mode.
| Machine type | L3000 Servo I | Output Time | 0.001-9.999s |
| Frequency | 15kHz/20kHz | Machine Journey | 370mm |
| InputVoltage | AC220V | Press size | 680x400x1656mm（Max） |
| Power | 2000W/3000W | Generator size | 436x124x270mm |
| Horn Stroke | 100mm |
