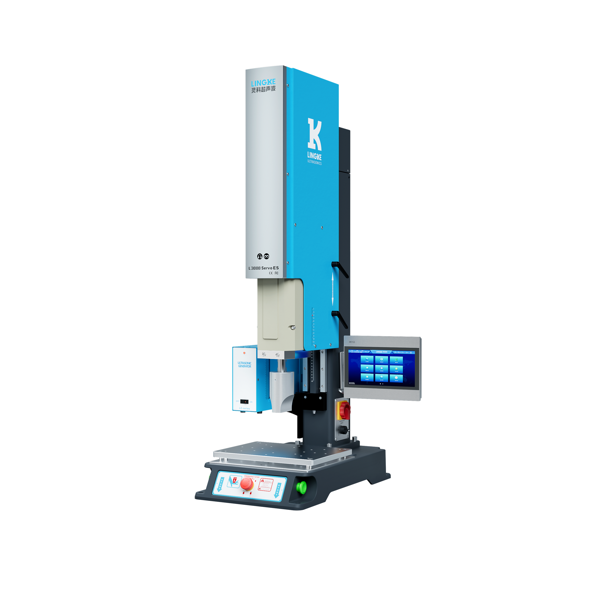

L3000 SERVO ES

(2000W/3000W Ultrasonic Welding Machine)

Features ——

Integrate multiple welding control technologies.The column and vibration tube are both designed with high-strength sliding railconnections to ensure welding strength, and the mechanical strength and highprecision are increased by pressing down.

Time accuracy of 0.01s.

Servo stroke control system,welding precision 0.0lmm.Fault self detection function, which can inspect various switch functions of the body.Data export: Comes with built-in storage/transmission for welding data exportfacilitatingintelligent data tracking.

Operating mode that complies with European CE safety regulations.

Functions ——



Language menu: Chinese/English.

Amplitude built-in, adjustable from 10% to 100%.

4operating modes:manual mode, time mode,energy mode, travel absolute.3 trigger modes: time, travel trigger, calculate time from source.5 types ofintelligent management: amplitude management,quality managementdata export and security management.

Intelligent control feedback function: fault selfdetection, real time automaticfrequency tracking, frequency locking, circuit constant voltage function.Fixture horizontal adjustment (optional: xYwelding platform).loT function: supportingRS232/485 data docking, printer output.2 types of pressure control: welding pressure, and cooling pressure control.3 weldingapplication modes: automated assembly line mode, European

safety mode, and pulse mode.
